The Next Generation of Valve Terminals: Festo VTUX's Top 5 Revolutionary Features

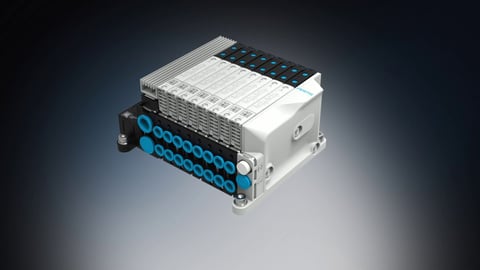

The industrial automation landscape continues to evolve at a rapid pace, demanding solutions that are both powerful and adaptable. Enter the Festo VTUX valve terminal - the successor to the established CPV, MPA-L/S, and VTUG ranges. As manufacturers face increasing pressure to optimize efficiency while reducing operational costs, this next-generation platform brings groundbreaking capabilities that are reshaping how we think about valve terminals in modern manufacturing.


230926_FESTO_VTUX_Animation_preview_w1320-2



 1. Advanced Communication Technology

At the heart of the VTUX lies its cutting-edge AP communication system. This isn't just another incremental improvement in connectivity - we're talking about blazing fast data rates up to 200 MBaud and cycle times as quick as 250 microseconds. The system processes an impressive 2 kByte of input/output data, ensuring seamless real-time communication between components.

For manufacturers dealing with complex automation systems, this means more responsive control, better synchronization, and the ability to handle sophisticated motion control applications with precision.

2. Unmatched Flexibility

The VTUX redefines adaptability in valve terminal design. Its internal communication system allows for free arrangement of modules, with the ability to support up to 128 valve functions through internal serial links. The terminal can be configured for both centralized and decentralized machine concepts, bridging distances up to 50 meters with minimal cable routing.

This flexibility extends to pressure zones as well - engineers can define multiple pressure zones within a single terminal, optimizing air consumption and system performance based on specific application needs.

3. High-Performance Construction

When it comes to physical design, Festo has achieved something remarkable. Using lightweight, high-performance polymer construction, the VTUX delivers impressive flow rates up to 730 l/min while maintaining a compact footprint. The innovative 10mm valve design can be mounted on both 10mm and 12mm grid sizes, allowing for optimization of space and flow requirements.

For applications requiring frequent maintenance or modifications, the terminal features tool-free access to key components and simplified assembly/disassembly processes.

4. Integrated Vacuum Solutions

The vacuum integration capabilities of the VTUX set new standards in pneumatic control. The system offers two power levels with a grid dimension of 12.5mm (nominal width 0.7mm/1mm), supporting applications requiring either high vacuum or large suction volume flows.

The integrated vacuum sensor enables continuous monitoring of actual values, while the parameterizable air-saving function optimizes energy consumption. These features can be adjusted via teach-in or directly from the PLC during operation, providing unprecedented control over vacuum applications.

5. Future-Proof Modularity

The VTUX's modular design principle ensures long-term value. Its open architecture allows for easy integration of both current and future innovations. The platform supports everything from basic valve functions to advanced technology modules, with the ability to scale from simple installations to complex automation systems.

The electrical modules snap together for quick assembly, while the three-tie rod system ensures mechanical stability. This combination of easy expansion and robust construction means the VTUX can adapt to changing automation requirements while maintaining reliable operation.


The Festo VTUX represents more than just an evolution in valve terminal technology - it's a comprehensive solution for modern manufacturing challenges. By combining advanced communication capabilities, unmatched flexibility, high performance, integrated vacuum solutions, and future-proof modularity, it delivers a platform that not only meets current automation challenges but is ready for tomorrow's innovations.

For manufacturers looking to optimize their operations while preparing for Industry 4.0, the VTUX offers a powerful, adaptable, and future-ready solution.

Want to learn more about the Festo VTUX? Click here to book a meeting today!
