Do You Still Like the Old School Function Keys on your HMI?

Picture of Hardik Thakkar, Siemens Product Specialist in Southern California

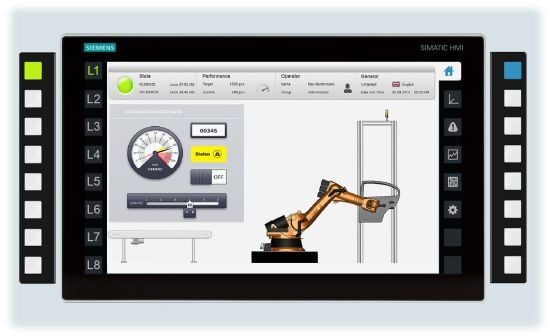

01_concept_kp8_lx_550

Key Features

feature 1

8 Programmable Keys

 19 x 19 mm short-stroke, configurable as DI or DO

feature 2

On-Screen Labeling

 Labels display on adjacent HMI — no label strips needed

feature 3

IP64 Protection

 Front-panel rated with included captive mounting clips

feature 4

5 LED Key Colors

 Red, green, blue, yellow, white — adjustable brightness

feature 5

TIA Portal Integration

 Menu-dependent key behavior configured directly in TIA Portal

feature 6

Slim Form Factor

 40.7 x 252.4 mm — mounts left, right, or below any display

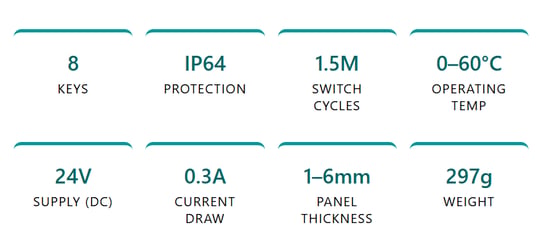

Technical Specifications

LED Key Colors




Application Examples

Packaging and assembly lines requiring dedicated operator controls.

 Automotive production with screen-driven, menu-dependent key functions.

 Phased HMI upgrades - runs standalone as a PROFINET node without a display.

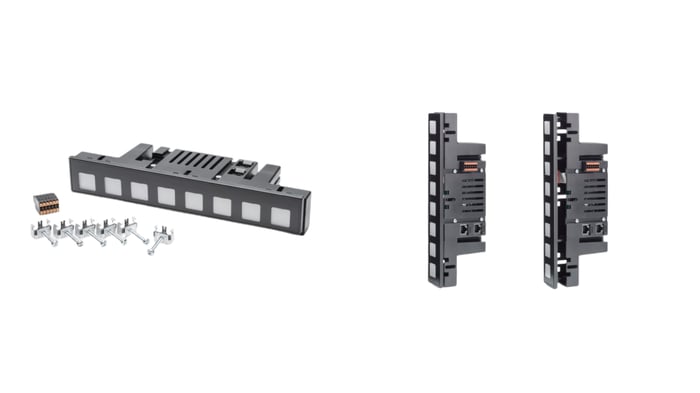

Spooky newsletter header (3)-1





















































Order number: 6AV2127-1AB00-0LX1

Want to see if the KP8 PN LX fits your upgrade path?
